PA-Cap 由於採用高電導率的聚合物材料作為陰極，具有超越現有液體鋁電解電容器和固體片式鉭電解電容器的卓越電性能， 因此 PA-Cap 廣泛應用於高頻
電子設備的電路中。
With highly conductive polymers as cathode materials, PA-Cap series capacitors perform well better than both liquid aluminum electrolytic
capacitors and solid tantalum capacitors, and can be widely used in high frequency circuits.

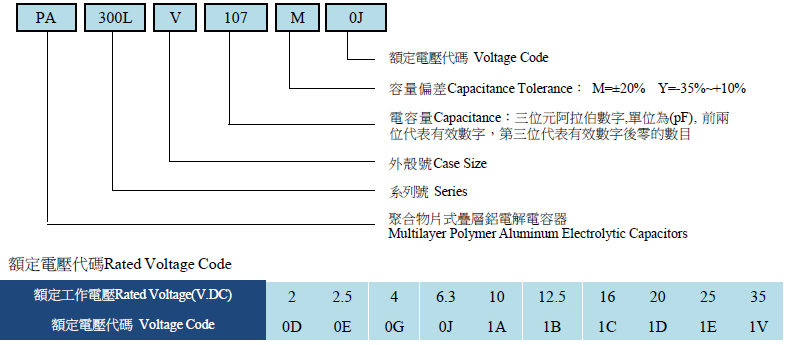

型號│Part Numbers

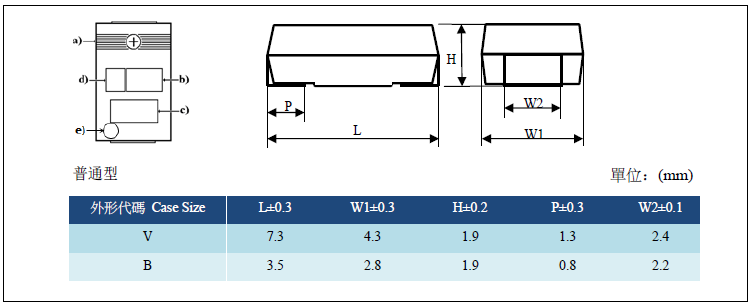

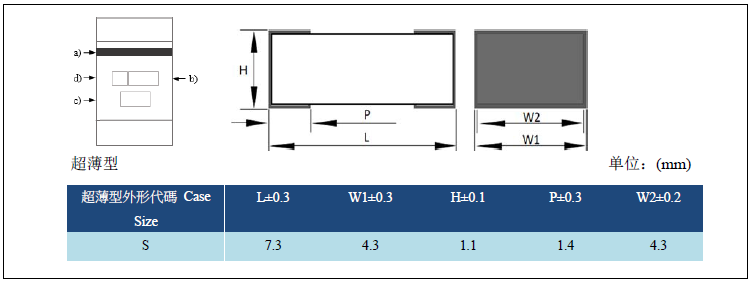

外形圖和尺寸│Configuration & Dimension

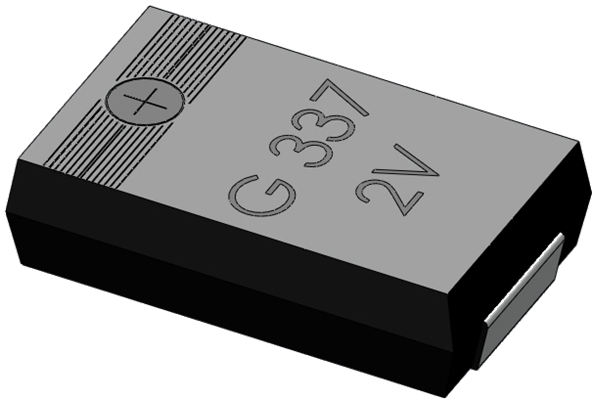

1.引出端極性（正極）Polarity indicator （Positive）
2.標稱容量Nominal Capacitance
3.額定電壓Rated Voltage
4.公司標誌ID
5.引出端極性（陰極）Polarity indicator （Negative）

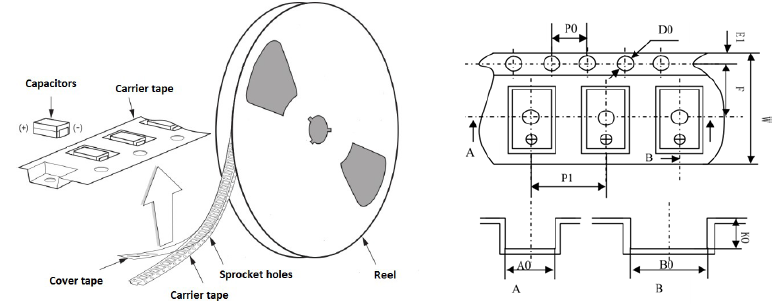

編帶和最小包裝數量│Taping & Minimum packing quantity
最小包裝數量 Minimum packing quantity
安裝│Capacitor Mounting

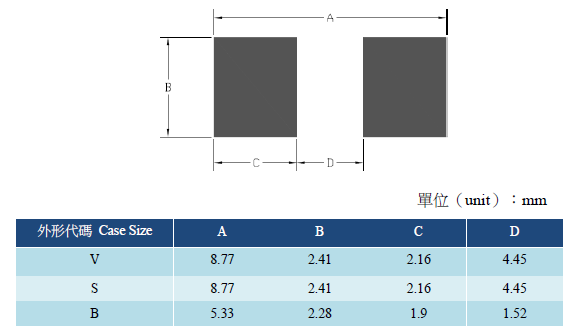

推薦焊盤尺寸Recommend land-pattem:
PA-Cap 聚合物片式疊層鋁電解電容器適合回流焊接。
PA-Cap series capacitors are suitable for re-flow soldering.

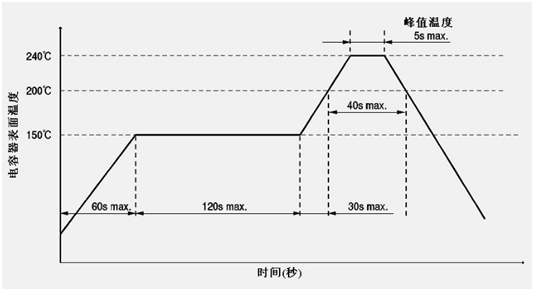

推薦焊接曲線如圖：
The following soldering curve is recommended：

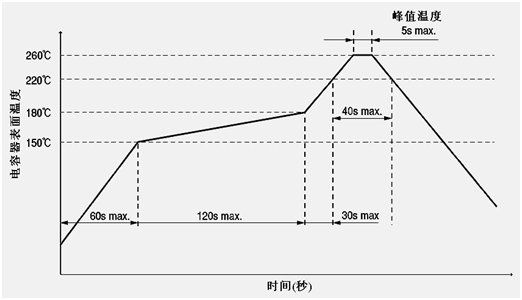

推薦無鉛焊接曲線如圖：
The following curve is recommended for lead-free soldering：
